The HAS mini-plant consists of a pilot plant and a laboratory for potent compounds. It is located in the existing 200,000sf Building; the area impacted by the project, 2500sf. The building is H-2 occupancy.
The new pilot plant includes:
- Three glass-lined reactor systems

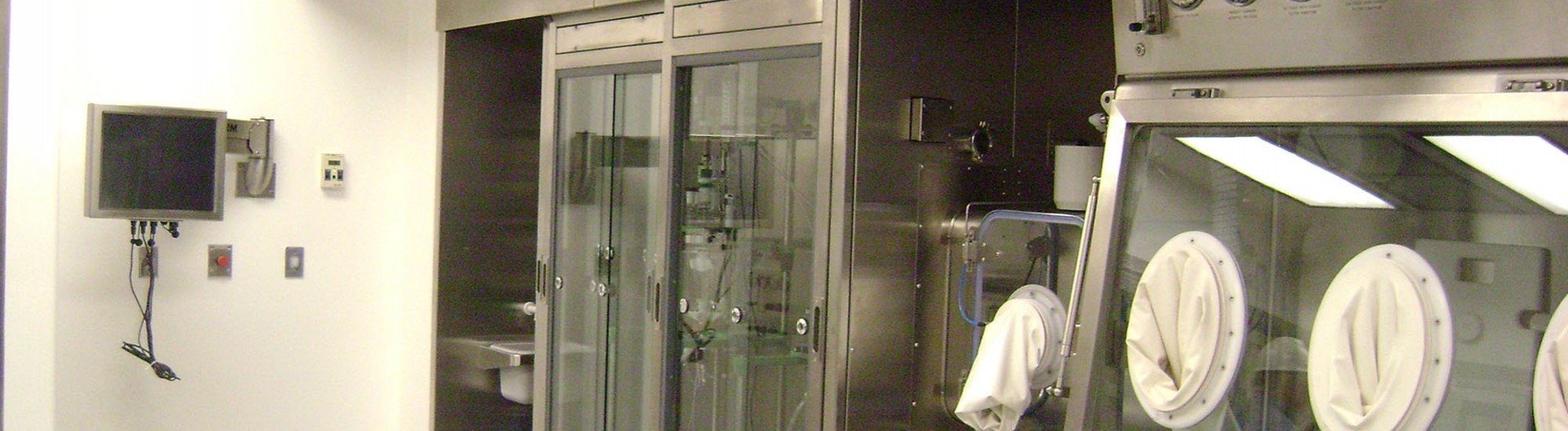

- Dispensing glovebox
- Filter dryer system with glovebox
- Isolation hoods
- Vacuum systems
- SYLTHERM XLT heat transfer systems
- Scrubber system
- Waste handling systems
IPS designed the 3D environment: architectural, structural, vessels and equipment. Design reviews were done with the client at an early stage to verify the design and obtain input. Piping plans, isometrics, and a full material take-off were developed from the model. Existing lines, floors wall and HVAC components were built into the model to avoid soft and hard interferences.
- Minimized shutdown
- Conducted prototyping of isolators
- Conducted model reviews with operations
